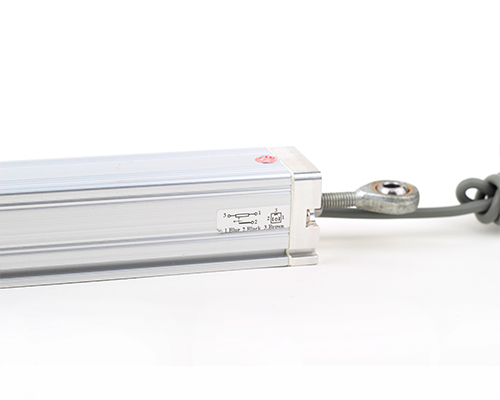

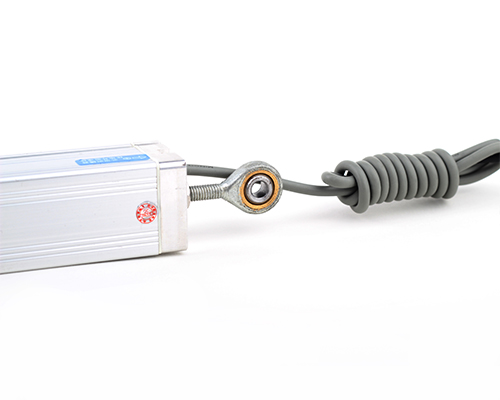

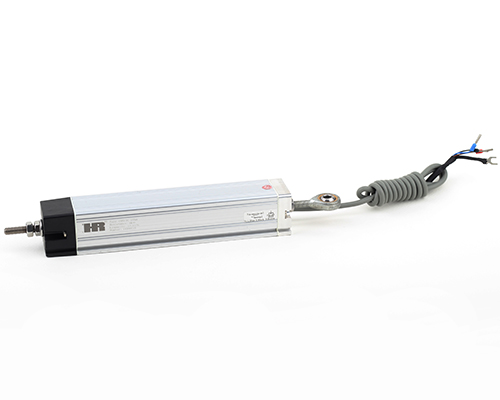

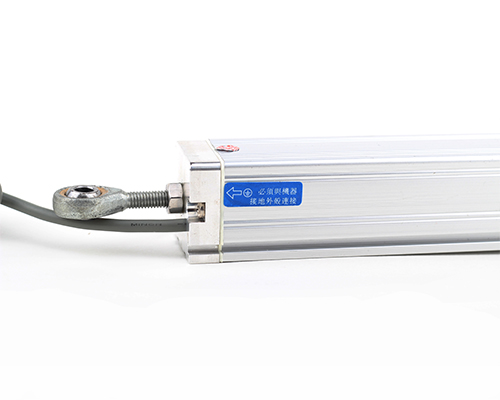

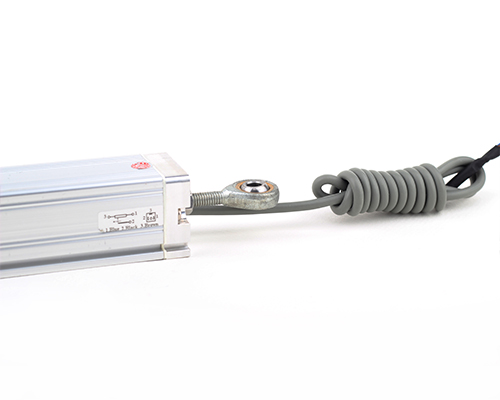

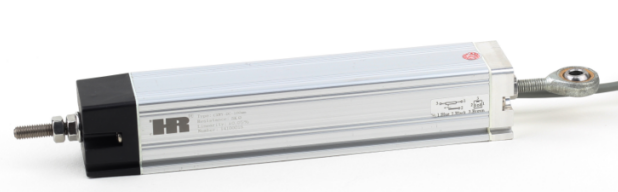

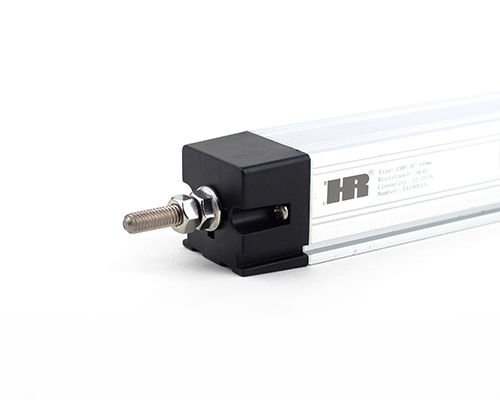

The linear displacement sensor CXWY-DC

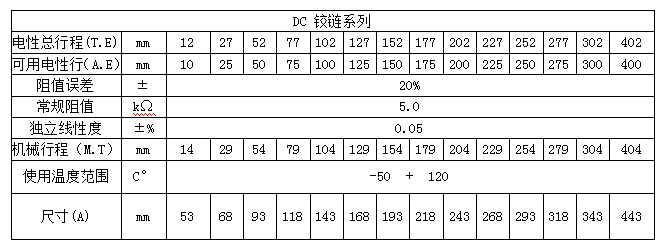

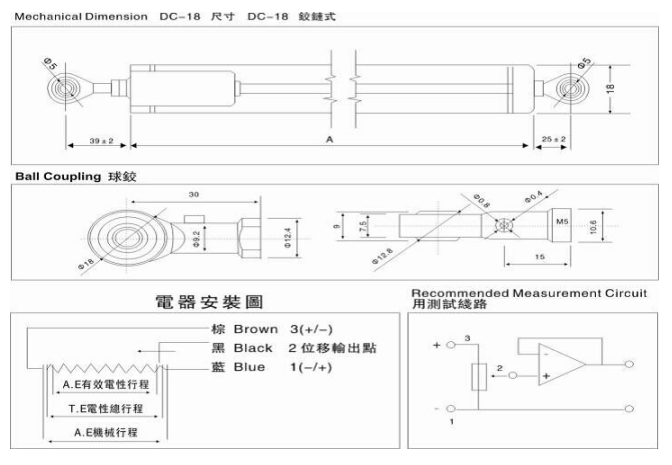

External module, joint bearing, range 0-400mm, optional analog output: +5V, 0-5v, 0-10v, 4-20ma with hinged installation at both ends, suitable for large mechanical travel and swing position detection, no requirement for neutral installation. For example: robot, brick machine, ceramic machinery, sluice control.
